1200万像素6mm低畸变镜头M12

物距Working Distance

倍率Magnification

视野 1/1.7"Field of View(mm)

型号Model

MTV06MP12C

mm

-

H

V

像机尺寸Image Size

1/1.7-inch

1000

0.0061X

1261.70

946.53

焦距Focal length

6mm

900

0.0068X

1137.72

853.42

光圈范围F No.

F4.0

800

0.0076X

1013.74

760.30

最短物距M.O.D(m)

0.1-Inf.

700

0.0086x

889.76

667.19

控制方式Operation

Iris

Fix固定

650

0.0093X

827.77

620.64

Focus

Manual手动调整

600

0.010X

765.78

574.08

视场角

Angle of View (D×H×V)

1/1.7"

75°×64°×50°

550

0.0109X

703.79

527.52

1/3"

53.5°×43.9°×33.7°

500

0.012X

641.80

480.96

畸变Distortion

<0.5%

450

0.0133X

579.80

434.41

机械后焦MBF

6.04mm

400

0.0149X

517.81

387.85

接口Mount

M12XP0.5

350

0.0169X

455.81

341.29

主光束入射角CRA

≤15°

300

0.0196X

393.81

294.73

分辨率Resolusion

12MP

250

0.0233X

331.81

248.16

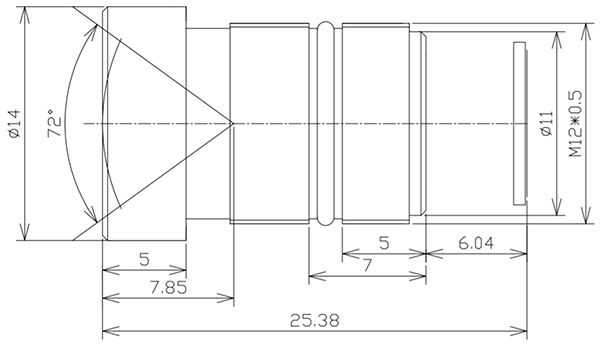

外形尺寸Dimension

Φ14×19.34mm

200

0.0287X

269.80

201.60

重量Weight

5.5g

150

0.0374X

207.77

155.02

工作温度Working Temperature

-20ºC ～ +60ºC

100

0.0536X

145.72

108.43
