1200万像素F5.6 12mm镜头M12

物距Working Distance

倍率Magnification

视野 1/1.7"Field of View(mm)

型号Model

MTV12MP12D

mm

-

H

V

像机尺寸Image Size

1/1.7-inch

1000

0.0122X

624.98

469.16

焦距Focal length

12mm

900

0.0131X

563.56

423.03

光圈范围F No.

F5.6

800

0.0151X

502.15

376.89

最短物距M.O.D(m)

0.2-Inf.

700

0.0173x

440.72

330.76

控制方式Operation

Iris

Fix固定

650

0.0180X

410.01

307.69

Focus

Manual手动调整

600

0.0195X

379.29

284.62

视场角

Angle of View (D×H×V)

1/1.7"

40.28°×33.2°×22.5°

550

0.0213X

348.57

261.55

畸变Distortion

<0.5%

500

0.0233X

317.85

238.47

光学后焦BFL

9.47mm

450

0.0259X

287.13

215.40

机械后焦MBF

5.0mm

400

0.0290X

256.39

192.31

接口Mount

M12XP0.5

350

0.0330X

225.65

169.23

主光束入射角CRA

≤15.61°

300

0.0391X

194.90

146.13

分辨率Resolusion

12MP

250

0.0457X

164.13

123.02

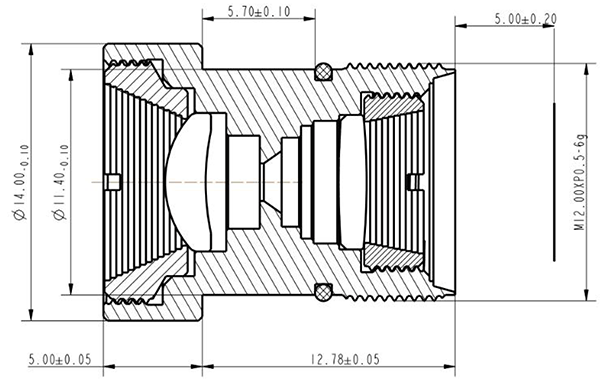

外形尺寸Dimension

Φ14×17.78mm

200

0.0572X

133.33

99.89

结构Structure

5G

150

0.0739X

102.48

76.72

工作温度Working Temperature

-20ºC ～ +60ºC

100

0.1072X

71.49

53.46
