5MP 16mm F1.8 C Mount Lens

Working Distance

Optical Magnification

2/3"Field of View(mm)

Model

FM1618MP5

mm

-

H

V

Image Size

2/3-inch

1000

0.016X

550.0

412.5

Focal length

16mm

900

0.018X

495.0

371.3

F No.

F1.8-16

850

0.019X

467.5

350.6

M.O.D(m)

0.1-Inf.

800

0.020X

440.0

330.0

Operation

Iris

Manual

750

0.021X

412.5

309.4

Focus

Manual

700

0.023X

385.0

288.8

Angle of View

(D×H×V)

2/3"

37.9°×30.8°×23.3°

650

0.025X

357.5

268.1

1/1.8"

31.0°×25.0°×18.8°

600

0.027X

330.0

247.5

1/2"

28.1°×22.6°×17.1°

550

0.029X

302.5

226.9

1/2.9"

21.9°×19.2°×10.7°

500

0.032X

275.0

206.3

TV Distortion

-0.2%

450

0.036X

247.5

185.6

BFL

10.33mm

400

0.040X

220.0

165.0

Flange FL

17.526mm

350

0.046X

192.5

144.4

Mount

C-Mount

300

0.053X

165.0

123.8

2/3"FOV

165.0mm×123.8mm(WD=300mm)

280

0.057X

154.0

115.5

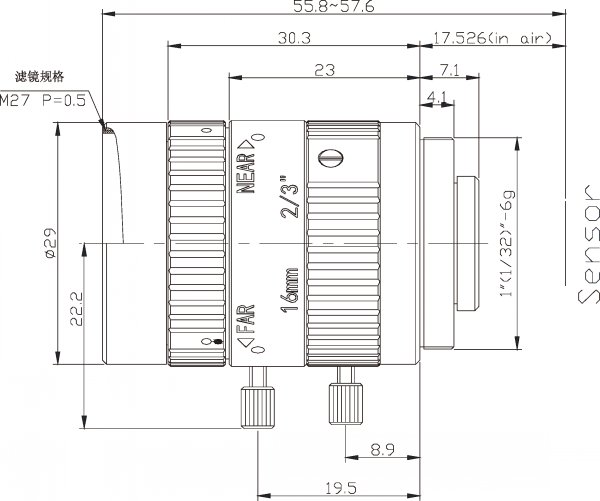

Dimension

Φ29×45.4mm

250

0.064X

137.5

103.1

Weight

75.0g

220

0.073X

121.0

90.8

Resolution

5.0MP

200

0.080X

110.0

82.5

Filter

M27 P=0.5mm

180

0.089X

99.0

74.3

Working Temperature

-20ºC ～ +60ºC

150

0.107X

82.5

61.9
