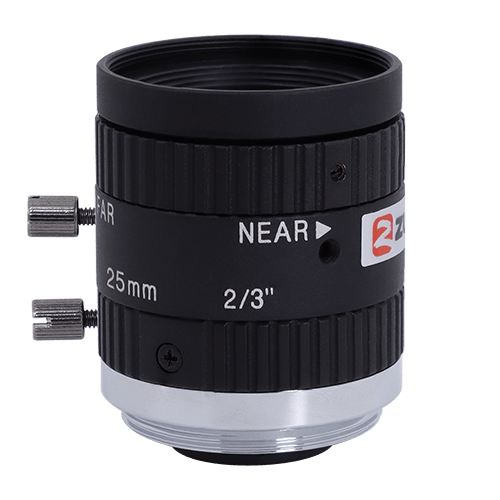

5MP 25mm F1.8 C Mount Lens

Working Distance

Optical Magnification

2/3"Field of View(mm)

Model

FM2518MP5

mm

-

H

V

Image Size

2/3-inch

1000

0.025X

352.0

264.0

Focal length

25mm

900

0.028X

316.8

237.6

F No.

F1.8-16

850

0.029X

299.2

224.4

M.O.D(m)

0.2-Inf.

800

0.031X

281.6

211.2

控制方Operation

Iris

Manual

750

0.033X

264.0

198.0

Focus

Manual

700

0.036X

246.4

184.8

Angle of View

(D×H×V)

2/3"

25°×20°×15°

650

0.038X

228.8

171.6

1/1.8"

20.1°×16.2°×12.1°

600

0.042X

211.2

158.4

1/2"

18.2°×14.6°×11°

550

0.045X

193.6

145.2

1/2.9"

10.1°×8.8°×4.9°

500

0.050X

176.0

132.0

TV Distortion

-0.3%

450

0.056X

158.4

118.8

BFL

13.01mm

400

0.063X

140.8

105.6

Flange FL

17.526mm

350

0.071X

123.2

92.4

Mount

C-Mount

300

0.083X

105.6

79.2

2/3"FOV

70.4mm×52.8mm(WD=200mm)

250

0.100X

88.0

66.0

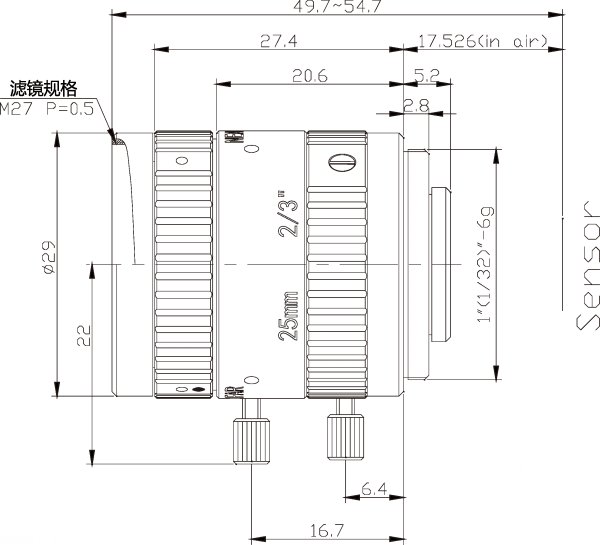

Dimension

Φ29×37.3mm

220

0.114X

77.4

58.1

Weight

63.0g

200

0.125X

70.4

52.8

Resolution

5.0MP

180

0.139X

63.4

47.5

Filter

M27 P=0.5mm

150

0.167X

52.8

39.6

Working Temperature

-20ºC ～ +60ºC

100

0.250X

35.2

26.4
