5MP 8mm F2.4 C Mount Lens |
Working Distance |
Optical Magnification |
2/3"Field of View(mm) |
|||
Model |
FM0824MP5 |
mm |
|
H |
V |
|
Image Size |
2/3-inch |
1000 |
0.008X |
1100.0 |
825.0 |
|
Focal length |
900 |
0.009X |
990.0 |
742.5 |
||
F No. |
F2.4-16 |
850 |
0.009X |
935.0 |
701.3 |
|
M.O.D(m) |
0.1-Inf. |
800 |
0.010X |
880.0 |
660.0 |
|
Operation |
Iris |
Manual |
750 |
0.010X |
825.0 |
618.8 |
Focus |
Manual |
700 |
0.011X |
770.0 |
577.5 |
|
Horizontal Angle of View (D×H×V) |
2/3" |
69°×57.6°×44.8° |
650 |
0.011X |
715.0 |
536.3 |
1/1.8" |
58°×47.9°×36.7° |
600 |
0.012X |
660.0 |
495.0 |
|
1/2" |
53.1°×43.6°×33.4° |
550 |
0.013X |
605.0 |
453.8 |
|
1/2.9" |
42.2°×37.1°×23.2° |
500 |
0.016X |
550.0 |
412.5 |
|
Distortion |
-0.2% |
450 |
0.018X |
595.0 |
371.3 |
|
BFL |
12.2mm |
400 |
0.020X |
440.0 |
330.0 |
|
Flange BFL |
17.526mm |
350 |
0.023X |
385.0 |
347.5 |
|
Mount |
C-Mount |
300 |
0.027X |
330.0 |
247.5 |
|
Object Dimension |
11.0cm×8.25cm(WD=100mm) |
250 |
0.032X |
275.0 |
206.3 |
|

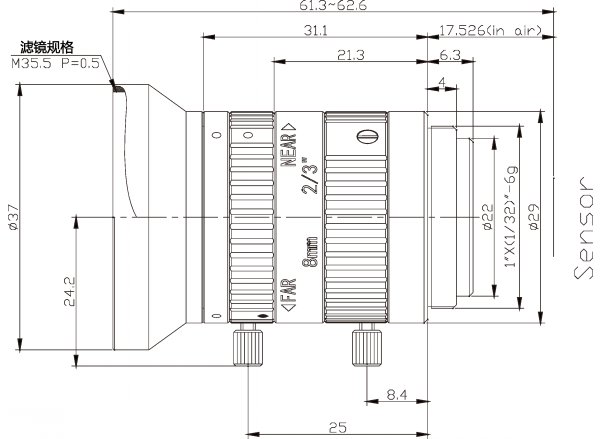

Dimension (Φ×L) |
Φ37×50.1mm |
200 |
0.040X |
220.0 |
165.0 |
|
Weight |
90.0g |
150 |
0.053X |
165.0 |
123.8 |
|
Horizontal Resolution |
5.0MP |
100 |
0.080X |
110.0 |
82.5 |
|
Filter Thread |
M35.5 P=0.5mm |
80 |
0.100X |
88.0 |
66.0 |
|
Temperature |
-20ºC ~ +60ºC |
50 |
0.160X |
55 |
41.3 |
