    ITS Lens KM5014MP8 50mm 8Megapixel Manual Iris Lens, 1-inch F1.4 Fixed focus Lens C Mount CCTV Lens
    C-Mount f=50mm F1.4
    Maximum image circle of 1" (φ16mm)
    High resolution ,excellent image uniformity
    high contrast,high peripheral brightness ratio
    Low distortion,compact appearance
    Locking set screws for focus and Iris
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1″ C-mount
    ◆ Focal length：f=50mm
    ◆ F No.：F1.4-C
    ◆ Features：1-inch ITS Lens 50mm 8MP Manual Iris Lens,  F1.4 Fixed focus Lens C Mount HD Lens

    ※ Model
    KM5014MP8

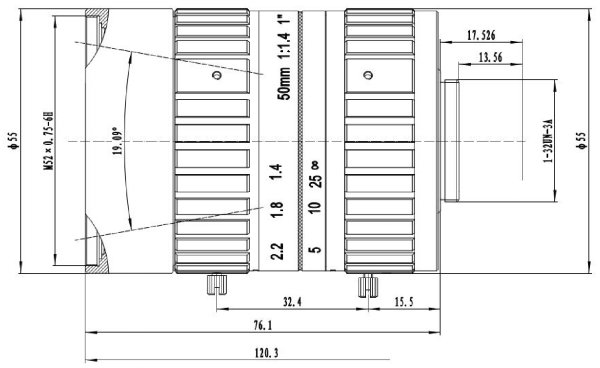

    ※ Dimension


    ※ Industries Application
    These are used in video surveillance industry and ITS. These cover applications from ITS and road monitoring and bank to security bayonet monitoring, Electronic police snapshot and traffic cameras and so on

    Model

    KM5014MP8

    Image Size

    1-inch

    Focal length

    50mm

    F No.

    F1.4-C

    M.O.D(m)

    0.5

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1" Type

    18.6°×14.8°×11°

    2/3"Type

    12.7°×10.2°×7.6°

    1/2"Type

    9.2°×7.6°×5.6°

    Distortion

    1" Type

    -0.9%

    Back focal length

    25.33mm

    Flange BFL

    17.526mm

    Mount

    C-Mount

    Dimension

    Ф55x76.1mm

    Weight

    411.0g

    Remark

    8MP ITS lens

    KM5014MP8 Specifications
