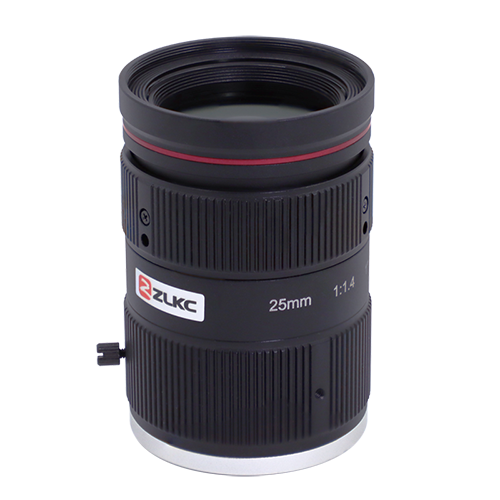

    ITS Lens KM2514MP8C 25mm 8MP Manual Iris Lens, 1-inch F1.4 Fixed focus C Mount Traffic camera lens
    C-Mount f=25mm F1.4
    Maximum image circle of 1"
    Ultra-High Resolution 8MP
    high contrast,delivers clean and sharp images
    Low distortion,Excellent low-light performance
    Locking set screws for focus and Iris
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1″ C-mount
    ◆ Focal length：f=25mm
    ◆ F No.：F1.4-C
    ◆ Features：1-inch ITS Lens 25mm 8MP Manual Iris Lens,  F1.4 C Mount Traffic camera lens

    ※ Model
    KM2514MP8C

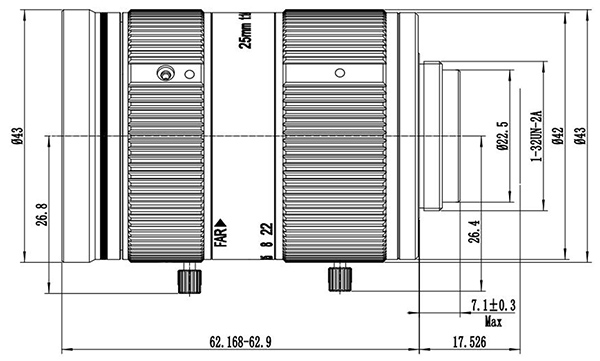

    ※ Dimension


    ※ Industries Application
    These are used in video surveillance industry and ITS. Violation behaviors detection: driving on lane line, Illegal lane change, wrong-way driving detection, seatbelt and phone call detectionThese cover applications from ITS and road monitoring and bank to security bayonet monitoring, Electronic police snapshot and traffic cameras and so on

    Model

    KM2514MP8C

    Image Size

    1-inch

    Focal length

    25mm

    F No.

    F1.4-C

    M.O.D(m)

    0.3

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1.1" Type

    40.1°×33.0°×22.9°

    1"  Type

    36.6°×32.4°×17.3°

    2/3"Type

    24.4°×19.5°×14.5°

    Distortion

    1.1"  Type

    -2.9%

    BFL

    11.7mm

    MFL

    11.1mm

    Flange BFL

    17.526mm

    Mount

    C-Mount

    Dimension

    Ф43x62.17mm

    Weight

    200.0g

    Operating temperature

    -30℃～+70℃

    Remark

    8.0 Megapixel ITS Lens

    KM2514MP8C specification
