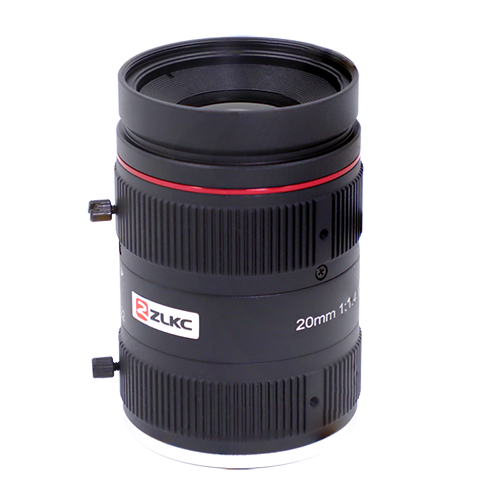

    ITS Lens KM2014MP8C 20mm 8MP Manual Iris Lens, 1-inch F1.4 Fixed focus C Mount Traffic camera lens
    C-Mount f=20mm F1.4
    Maximum image circle of 1"
    Ultra-High Resolution 8MP
    high contrast,delivers clean and sharp images
    Low distortion,Excellent low-light performance
    Locking set screws for focus and Iris
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1″ C-mount
    ◆ Focal length：f=20mm
    ◆ F No.：F1.4-C
    ◆ Features：1-inch ITS Lens 20mm 8MP Manual Iris Lens,  F1.4 C Mount Traffic camera lens

    ※ Model
    KM2014MP8C

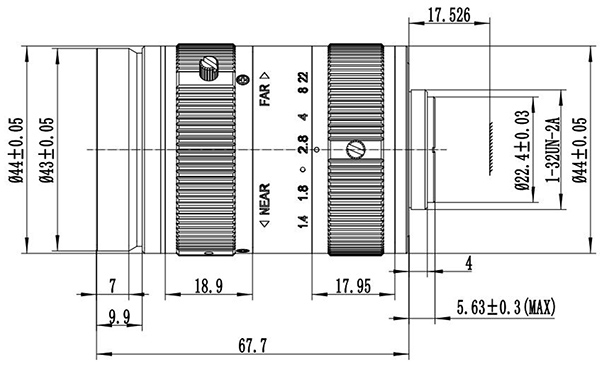

    ※ Dimension


    ※ Industries Application
    These are used in video surveillance industry and ITS. Violation behaviors detection: driving on lane line, Illegal lane change, wrong-way driving detection, seatbelt and phone call detectionThese cover applications from ITS and road monitoring and bank to security bayonet monitoring, Electronic police snapshot and traffic cameras and so on

    Model

    KM2014MP8C

    Image Size

    1-inch

    Focal length

    20mm

    F No.

    F1.4-C

    M.O.D(m)

    0.3

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1.1" Type

    49.1°×42.4°×28.0°

    1"  Type

    44.6°×39.4×21.0°

    2/3"Type

    31.0°×24.7°×18.6°

    Distortion

    1.1"  Type

    -3.21%

    BFL

    12.474mm

    MFL

    13.5mm

    Flange BFL

    17.526mm

    Mount

    C-Mount

    Dimension

    Ф45x67.7mm

    Weight

    216.5g

    Operating temperature

    -30℃～+70℃

    Remark

    8.0 Megapixel ITS Lens

    KM2014MP8C specification
