    ITS Lens KM2014MP8 20mm 8Megapixel Manual Iris Lens, 1-inch F1.4 Fixed focus Lens C Mount CCTV Lens
    C-Mount f=20mm F1.4
    Maximum image circle of 1" (φ16mm)
    High resolution ,excellent image uniformity
    high contrast,high peripheral brightness ratio
    Low distortion,compact appearance
    Locking set screws for focus and Iris
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1″ C-mount
    ◆ Focal length：f=20mm
    ◆ F No.：F1.4-C
    ◆ Features：1-inch ITS Lens 20mm 8MP Manual Iris Lens,  F1.4 Fixed focus Lens C Mount HD Lens

    ※ Model
    KM2014MP8

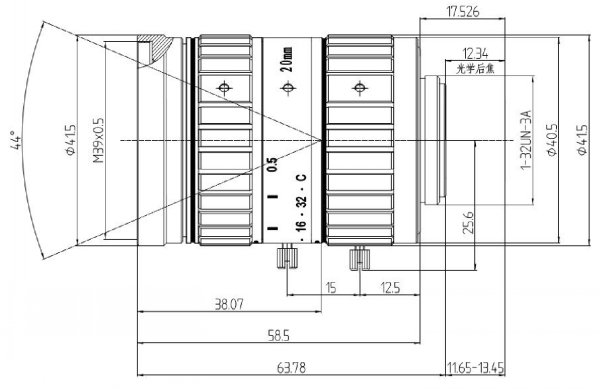

    ※ Dimension


    ※ Industries Application
    These are used in video surveillance industry and ITS. These cover applications from ITS and road monitoring and bank to security bayonet monitoring, Electronic police snapshot and traffic cameras and so on

    Model

    KM2014MP8

    Image Size

    1-inch

    Focal length

    20mm

    F No.

    F1.4-C

    M.O.D(m)

    0.3

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1"  Type

    44.5°×36.1°×27.1°

    2/3"Type

    31.0°×24.7°×18.6°

    1/2"Type

    22.8°×18.2°×13.8°

    Distortion

    1"  Type

    -2.5%

    Back focal length

    12.34mm

    Flange BFL

    17.526mm

    Mount

    C-Mount

    Dimension

    Ф41.5x59.8mm

    Weight

    218.0g

    Horizontal Resolution

    200lp/mm

    Remark

    8MP ITS lens
