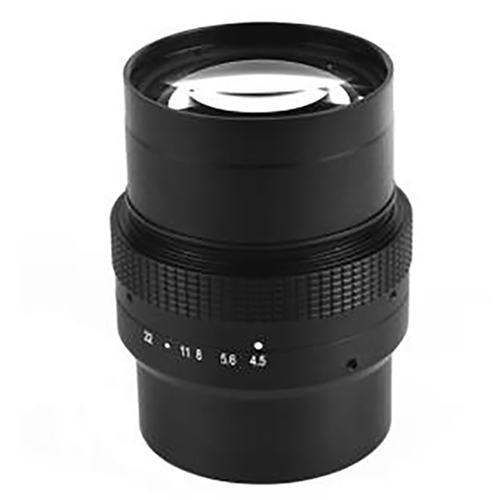

    Line Scan Lens Φ60 Image Circle FL40mm TM4008K20 0.2Ｘ M72*P0.75
    0.2Ｘ M72*P0.75 f=40mm
    Maximum image circle Φ60mm
    High resolution and high measurement accuracy
    Small Magnification and low distortion
    applicable to 4K/8K 7μm line scan cameras
    Option: Interface from V-Mount to M42,M58,F-mount
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Circle：Φ60 M72*P0.75
    ◆ Focal length：f=40mm
    ◆ F No.：F5.6
    ◆ Features：FL40mm M72*P0.75 Mount Φ60 Format 0.2X Marco Line Scan Lens

    ※ Model
    TM4008K20

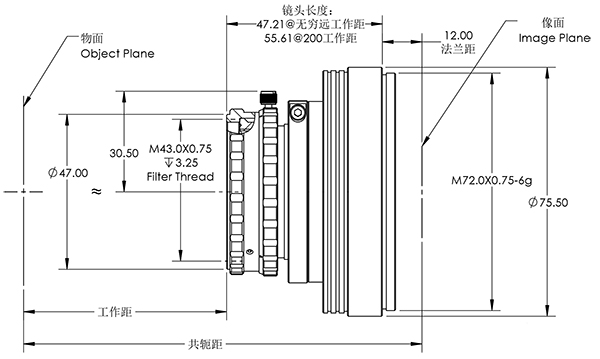

    ※ Dimension


    ※ Industries Application
    These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.

    FL40mm Φ60 Image Circle 0.2X Line Scan Lens

    Model

    TM4008K20

    Max Image Circle

    Φ60

    Focal length

    40mm

    F No.

    F5.6

    Distortion

    <0.1%

    Operation

    Iris

    Manual

    Focus

    Manual

    Flange BFL

    12mm

    Mount

    M72*P0.75

    Dimension

    Φ75.5×47.21mm

    Filter

    M43x 0.75

    Working Temperature

    -20ºC ～ +60ºC

    Working Distance(mm)

    Optical Magnification

    Conjuguate Distance(mm)

    （Φ58）Field of View(mm)

    （Φ60）Field of View(mm)

    610±5

    0.07X

    674±9

    828

    857

    226±5

    0.2X

    296±9

    290

    300

    186±5

    0.25X

    258±9

    232

    240

    TM4008K20 Specifications
