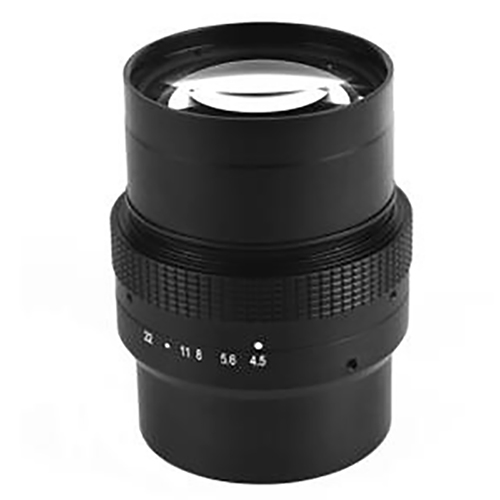

    Line Scan Lens Φ30 Image Circle FL29mm TM2904K10 0.1Ｘ V-Mount
    0.1Ｘ V-Mount f=29mm
    Maximum image circle Φ30mm
    High resolution and high measurement accuracy
    Small Magnification and low distortion
    applicable to 4K/8K 7μm line scan cameras
    Option: Interface from V-Mount to M42,M58,F-mount
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Circle：Φ30 V-Mount
    ◆ Focal length：f=29mm
    ◆ F No.：F4.0
    ◆ Features：FL29mm V-Mount Φ30 Format 0.1X Marco Line Scan Lens

    ※ Model
    TM2904K10

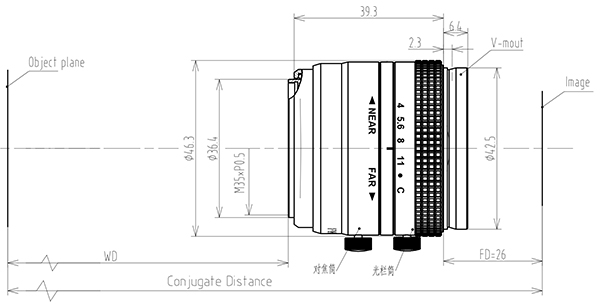

    ※ Dimension


    ※ Industries Application
    These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.

    FL29mm Φ30 Image Circle 0.1X Line Scan Lens

    Model

    TM2904K10

    Max Image Circle

    Φ30

    Focal length

    29mm

    F No.

    F4.0

    Distortion

    <0.1%

    Operation

    Iris

    Manual

    Focus

    Manual

    Flange BFL

    26mm

    Mount

    V-Mount

    Dimension

    Φ46.3×39.3mm

    Filter

    M35x 0.5

    Working Temperature

    -20ºC ～ +60ºC

    Working Distance(mm)

    Optical Magnification

    Conjuguate Distance(mm)

    （Φ28）Field of View(mm)

    （Φ30）Field of View(mm)

    594.7±5

    0.05X

    661.5±9

    560

    600

    299.7±5

    0.1X

    368.0±9

    280

    300

    103.0±5

    0.3X

    177.2±9

    93.3

    100

    TM2904K10 Specifications
