    Line Scan Lens Φ43.2 Image Circle FL40mm TM4004K10 0.1Ｘ V-Mount
    0.1Ｘ V-Mount f=40mm
    Maximum image circle Φ43.2mm
    High resolution and high measurement accuracy
    Small Magnification and low distortion
    applicable to 4K/8K 7μm line scan cameras
    Option: Interface from V-Mount to M42,M58,F-mount
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Circle：Φ43.2 V-Mount
    ◆ Focal length：f=40mm
    ◆ F No.：F2.8
    ◆ Features：FL40mm V-Mount Φ43.2 Format 0.1X Marco Line Scan Lens

    ※ Model
    TM4004K10

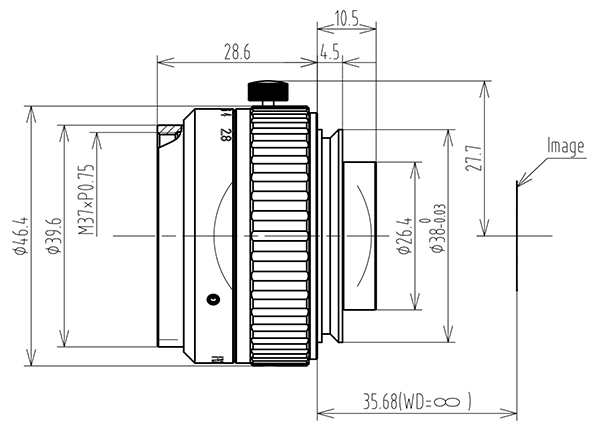

    ※ Dimension


    ※ Industries Application
    These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.

    FL40mm Φ43.2 Image Circle 0.1X Line Scan Lens

    Model

    TM4004K10

    Max Image Circle

    Φ43.2

    Focal length

    40mm

    F No.

    F2.8

    Distortion

    <0.5%

    Operation

    Iris

    Manual

    Focus

    Manual

    Flange BFL

    37.31mm/40.1mm/49.34mm

    Mount

    V-Mount

    Dimension

    Φ46.4×28.6mm

    Filter

    M37x 0.75

    Working Temperature

    -20ºC ～ +60ºC

    Working Distance(mm)

    Optical Magnification

    Conjuguate Distance(mm)

    Image Distance(mm)

    （Φ43.2）Field of View(mm)

    1051.4±5

    0.04X

    1117.3±9

    27.65±2.5

    1085.3

    400±5

    0.1X

    468.67±9

    30.43±2.5

    402.9

    140.7±5

    0.33X

    218.65±9

    39.68±2.5

    130.8

    TM4004K10 Specifications
