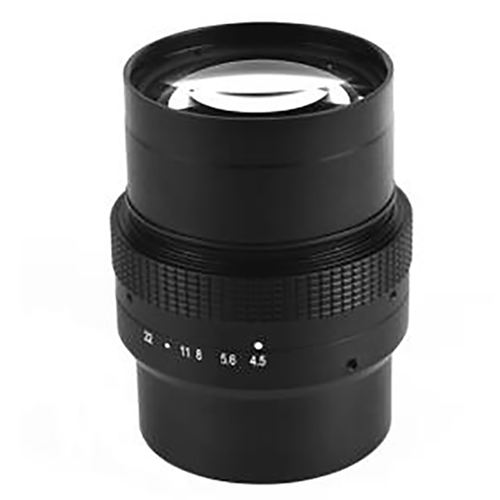

    Line Scan Lens Φ30 Image Circle FL20mm TM2004K03 0.0358Ｘ M42*P1
    0.358Ｘ M42*P1 f=20mm
    Maximum image circle Φ30mm
    High resolution and high measurement accuracy
    Small Magnification and low distortion
    applicable to 4K/8K 7μm line scan cameras
    Option: Interface from V-Mount to M42,M58,F-mount
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Circle：Φ30 M42*P1
    ◆ Focal length：f=20mm
    ◆ F No.：F4.5
    ◆ Features：FL20mm M42*P1 Mount Φ30 Format 0.358X Marco Line Scan Lens

    ※ Model
    TM2004K03

    ※ Dimension


    ※ Industries Application
    These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.

    FL20mm Φ30 Image Circle 0.0358X Line Scan Lens

    Model

    TM2004K03

    Max Image Circle

    Φ30

    Focal length

    20mm

    F No.

    F4.5

    Distortion

    <0.2%

    Operation

    Iris

    Manual

    Focus

    Manual

    Flange BFL

    16mm

    Mount

    M42*P1

    Dimension

    Φ52×44.8mm

    Filter

    M43x 0.75

    Working Temperature

    -20ºC ～ +60ºC

    Working Distance(mm)

    Optical Magnification

    Conjuguate Distance(mm)

    Image Distance(mm)

    （Φ30）Field of View(mm)

    261.7±5

    0.1X

    261.7±9

    14.6±2.5

    300

    557.4±5

    0.0358X

    619.1±9

    13.3±2.5

    838

    998.7±5

    0.02X

    1060.1±9

    13.0±2.5

    1500

    TM2004K03 Specifications
