1200万像素40mm低畸变镜头C Mount

物距Working Distance

倍率Magnification

视野1/1.7"Field of View(7.6*5.7mm)

型号Model

LM4028MP12

mm

X

H

V

像机尺寸Image Size

1/1.7-inch(Φ9.5)

1000

0.0426X

178.44

133.86

焦距Focal length

40mm

900

0.0409X

161.91

121.45

光圈范围F No.

F2.8-16

800

0.0461X

145.27

108.96

最短物距M.O.D(m)

0.25-Inf.

700

0.0528x

128.49

96.37

控制方式Operation

Iris

Manual手动调整

650

0.0569X

120.04

90.03

Focus

Manual手动调整

600

0.0618X

111.54

83.65

视场角 (D*H*V)

Angle of View

1/1.7"

12.78°×10.53°×7.04°

550

0.0676X

102.99

77.23

畸变Distortion

<0.02%

500

0.0806X

94.36

70.76

光学后焦BFL

12.1～24.5mm

450

0.0831X

85.66

64.23

法兰后焦距Flange BFL

17.526mm

400

0.0938X

76.86

57.63

接口Mount

C-Mount

350

0.1120X

67.94

50.94

最大主光线夹角CRA

5.1°

300

0.1266X

58.87

44.13

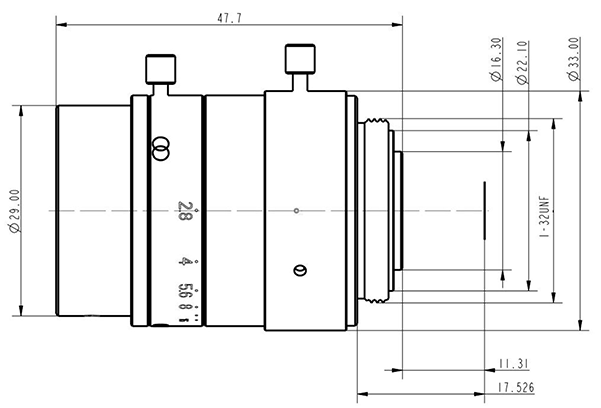

外形尺寸Dimension

Φ33×41.5mm

250

0.1535X

49.59

37.18

重量Weight

67.3g

200

/

/

/

滤镜尺寸Filter Thread

M27xP0.5

150

/

/

/

工作温度Working Temperature

-20ºC ～ +60ºC

100

/

/

/
