1200万像素12mm低畸变镜头C Mount

物距Working Distance

倍率Magnification

视野1/1.7"Field of View(7.6*5.7mm)

型号Model

LM1228MP12

mm

X

H

V

像机尺寸Image Size

1/1.7-inch(Φ9.5)

1000

0.0122X

624.98

469.16

焦距Focal length

12mm

900

0.0131X

563.56

423.03

光圈范围F No.

F2.8-16

800

0.0151X

502.15

376.89

最短物距M.O.D(m)

0.1-Inf.

700

0.0173x

440.72

330.76

控制方式Operation

Iris

Manual手动调整

650

0.0180X

410.01

307.69

Focus

Manual手动调整

600

0.0195X

379.29

284.62

视场角 (D*H*V)

Angle of View

1/1.7"

41.85°×34.14°×25.97°

550

0.0213X

348.57

261.55

畸变Distortion

<0.005%

500

0.0233X

317.85

238.47

光学后焦BFL

12.68～14.13mm

450

0.0259X

287.13

215.40

法兰后焦距Flange BFL

17.526mm

400

0.0290X

256.39

192.31

接口Mount

C-Mount

350

0.0330X

225.65

169.23

最大主光线夹角CRA

5.7°

300

0.0391X

194.90

146.13

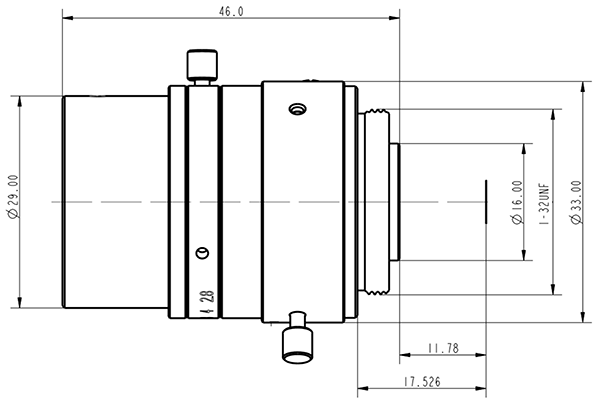

外形尺寸Dimension

Φ29×46mm

250

0.0457X

164.13

123.02

重量Weight

61.8g

200

0.0572X

133.33

99.89

滤镜尺寸Filter Thread

M27xP0.5

150

0.0739X

102.48

76.72

工作温度Working Temperature

-20ºC ～ +60ºC

100

0.1072X

71.49

53.46
