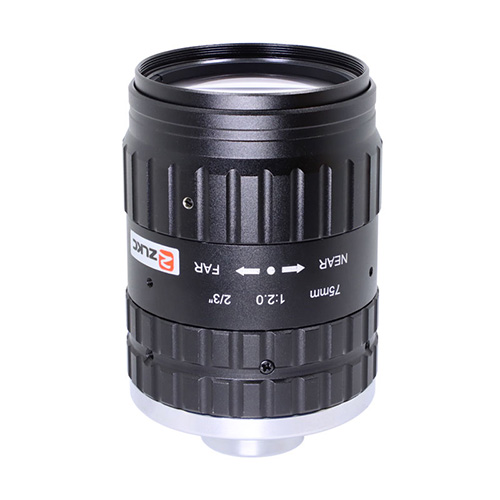

10MP 75mm 2/3"C Mount FA LENS |
Working Distance |
Optical Magnification |
Field of View 2/3"(mm) |
|||
Model |
FM7520MP10 |
mm |
- |
H |
V |
|
Image Size |
2/3-inch |
1350 |
0.0581X |
151.4 |
113.6 |
|
Focal length |
75mm |
1300 |
0.0605X |
145.6 |
109.2 |
|
F No. |
F2.0-16 |
1250 |
0.0630X |
139.7 |
104.8 |
|
M.O.D(m) |
0.8-Inf. |
1200 |
0.0658X |
133.8 |
100.3 |
|
Operation |
Iris |
Manual |
1150 |
0.0688X |
127.9 |
95.9 |
Focus |
Manual |
1100 |
0.0721X |
122.1 |
91.5 |
|
Angle of View (D×H×V) |
2/3" |
8.4°×6.7°×5.0° |
1050 |
0.0757X |
116.2 |
87.1 |
1/2" |
6.1°×4.9°×3.7° |
1000 |
0.0798X |
110.3 |
82.7 |
|
1/3" |
4.6°×3.7°×2.7° |
950 |
0.0843X0 |
104.4 |
78.3 |
|
Operating Wavelength |
400nm~700nm |
900 |
0.8930X |
98.54 |
74.0 |
|
TV Distortion |
-0.02% |
850 |
0.0900X |
93.5 |
70.3 |
|
BFL |
10.54mm(in air) |
800 |
0.1000X |
88.0 |
66.0 |
|
Flange FL |
17.526mm |
- |
- |
- |
- |
|
Mount |
C-Mount |
- |
- |
- |
- |
|
2/3"FOV |
94.5mm×79.0mm(WD=800mm) |
- |
- |
- |
- |
|

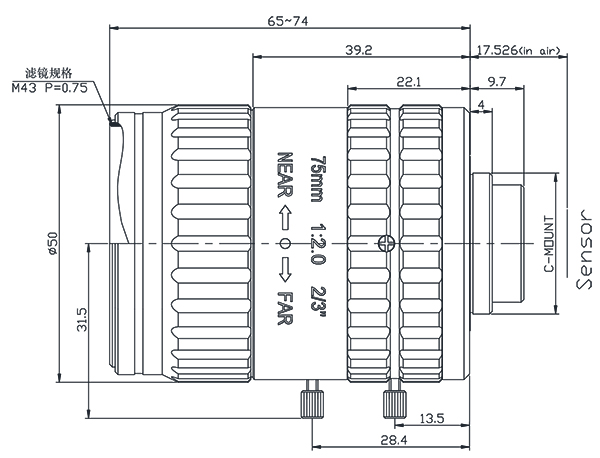

Dimension |
Φ50×65mm |
- |
- |
- |
- |
|
Weight |
338.1g |
- |
- |
- |
- |
|
Resolution |
10MP |
- |
- |
- |
- |
|
Filter |
M43 P=0.75mm |
- |
- |
- |
- |
|
Working Temperature |
-20ºC ~ +60ºC |
- |
- |
- |
- |
