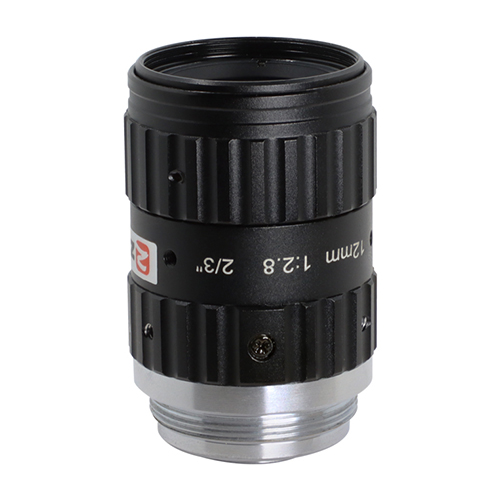

10MP 12mm 2/3"C Mount FA LENS |
Working Distance |
Optical Magnification |
Field of View 2/3"(mm) |
|||
Model |
FM1228MP10 |
mm |
- |
H |
V |
|
Image Size |
2/3-inch |
1000 |
0.012X |
733.3 |
550.0 |
|
Focal length |
12mm |
900 |
0.013X |
660.0 |
495.0 |
|
F No. |
F2.8-16 |
850 |
0.014X |
623.3 |
467.5 |
|
M.O.D(m) |
0.1-Inf. |
800 |
0.015X |
586.7 |
440.0 |
|
Operation |
Iris |
Manual |
750 |
0.016X |
550.0 |
412.5 |
Focus |
Manual |
700 |
0.017X |
513.3 |
385.0 |
|
Angle of View (D×H×V) |
2/3" |
49.2°×40.2°×30.8° |
650 |
0.018X |
476.7 |
357.5 |
1/2" |
36.9°x29.9°x22.6° |
600 |
0.020X |
440.0 |
330.0 |
|
1/3" |
28.1°×22.6°×17.1° |
550 |
0.022X |
403.3 |
302.5 |
|
Operating Wavelength |
400nm~700nm |
500 |
0.024X |
366.7 |
275.0 |
|
TV Distortion |
-0.2% |
450 |
0.027X |
330.0 |
247.5 |
|
BFL |
9.88mm |
400 |
0.030X |
293.3 |
220.0 |
|
Flange FL |
17.526mm |
350 |
0.034X |
256.7 |
192.5 |
|
Mount |
C-Mount |
300 |
0.040X |
220.0 |
165.0 |
|
2/3"FOV |
7.33cm×5.5cm(WD=100mm) |
250 |
0.048X |
183.3 |
137.5 |
|

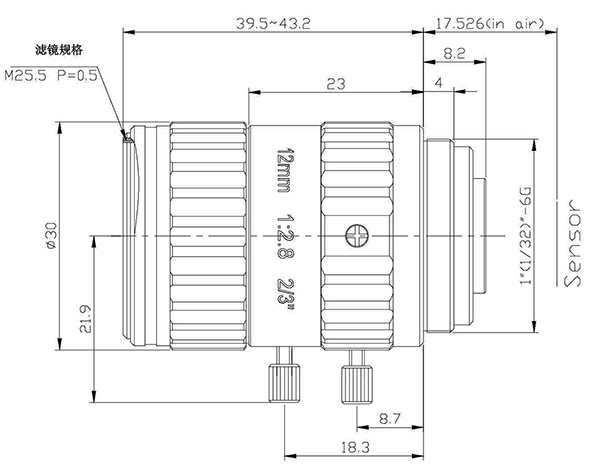

Dimension |
Φ30×39.5mm |
200 |
0.060X |
146.7 |
110.0 |
|
Weight |
75g |
180 |
0.067X |
132.0 |
99.0 |
|
Resolution |
10MP |
150 |
0.080X |
110.0 |
82.5 |
|
Filter |
M25.5 P=0.5mm |
100 |
0.120X |
73.3 |
55.0 |
|
Working Temperature |
-20ºC ~ +60ºC |
- |
- |
- |
- |
