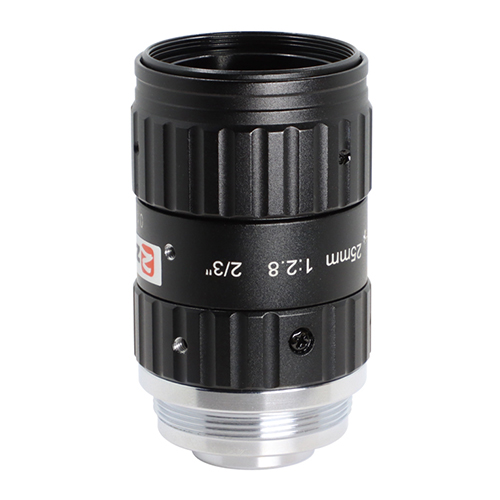

10MP 25mm 2/3"C Mount FA LENS

Working Distance

Optical Magnification

Field of View 2/3"(mm)

Model

FM2528MP10

mm

-

H

V

Image Size

2/3-inch

1000

0.025X

352.0

264.0

Focal length

25mm

900

0.028X

316.8

237.6

F No.

F2.8-16

850

0.029X

299.2

224.4

M.O.D(m)

0.1-Inf.

800

0.031X

281.6

211.2

Operation

Iris

Manual

750

0.033X

264.0

198.0

Focus

Manual

700

0.036X

246.4

184.8

Angle of View

(D×H×V)

2/3"

25°×20°×15°

650

0.038X

228.8

171.6

1/2"

18.2°×14.6°×11°

600

0.042X

211.2

158.4

1/3"

13.7°×11.0°×8.2°

550

0.045X

193.6

145.2

Operating Wavelength

400nm~700nm

500

0.050X

176.0

132.0

TV Distortion

-0.3%

450

0.056X

158.4

118.8

BFL

10.07mm

400

0.063X

140.8

105.6

Flange FL

17.526mm

350

0.071X

123.2

92.4

Mount

C-Mount

300

0.083X

105.6

79.2

2/3"FOV

70.4mm×52.8mm(WD=200mm)

250

0.100X

88.0

66.0

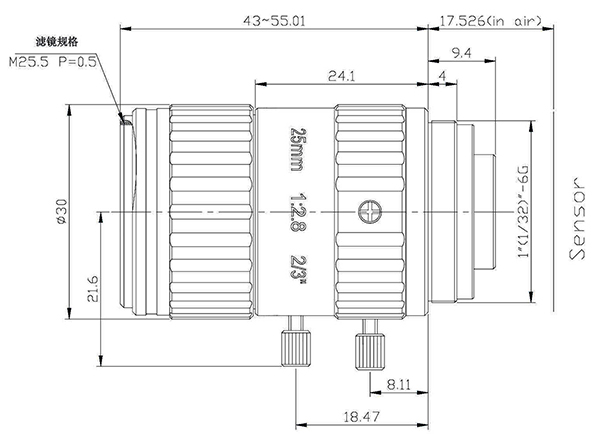

Dimension

Φ30×43mm

220

0.114X

77.4

58.1

Weight

74.5.0g

200

0.125X

70.4

52.8

Resolution

10MP

180

0.139X

63.4

47.5

Filter

M25.5 P=0.5mm

150

0.167X

52.8

39.6

Working Temperature

-20ºC ～ +60ºC

100

0.250X

35.2

26.4
