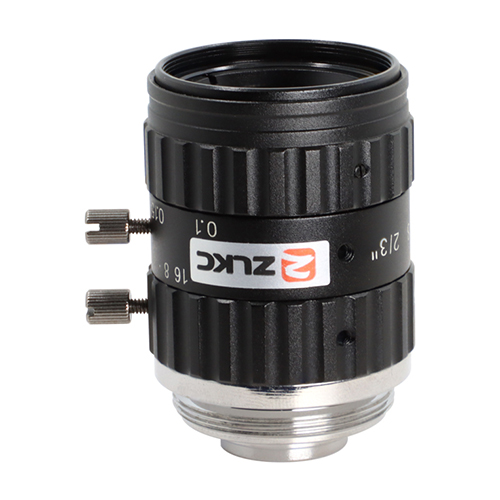

10MP 16mm 2/3"C Mount FA LENS |
Working Distance |
Optical Magnification |
Field of View 2/3"(mm) |
|||
Model |
FM1628MP10 |
mm |
- |
H |
V |
|
Image Size |
2/3-inch |
1000 |
0.016X |
550.0 |
412.5 |
|
Focal length |
16mm |
900 |
0.018X |
495.0 |
371.3 |
|
F No. |
F2.8-16 |
850 |
0.019X |
467.5 |
350.6 |
|
M.O.D(m) |
0.1-Inf. |
800 |
0.020X |
440.0 |
330.0 |
|
Operation |
Iris |
Manual |
750 |
0.021X |
412.5 |
309.4 |
Focus |
Manual |
700 |
0.023X |
385.0 |
288.8 |
|
Angle of View (D×H×V) |
2/3" |
37.9°×30.8°×23.3° |
650 |
0.025X |
357.5 |
268.1 |
1/2" |
28.1°×22.6°×17.1° |
600 |
0.027X |
330.0 |
247.5 |
|
1/3" |
21.9°×19.2°×10.7° |
550 |
0.029X |
302.5 |
226.9 |
|
Operating Wavelength |
400nm~700nm |
500 |
0.032X |
275.0 |
206.3 |
|
TV Distortion |
-0.2% |
450 |
0.036X |
247.5 |
185.6 |
|
BFL |
9.88mm |
400 |
0.040X |
220.0 |
165.0 |
|
Flange FL |
17.526mm |
350 |
0.046X |
192.5 |
144.4 |
|
Mount |
C-Mount |
300 |
0.053X |
165.0 |
123.8 |
|
2/3"FOV |
165mm×123.8mm(WD=300mm) |
280 |
0.057X |
154.0 |
115.5 |
|

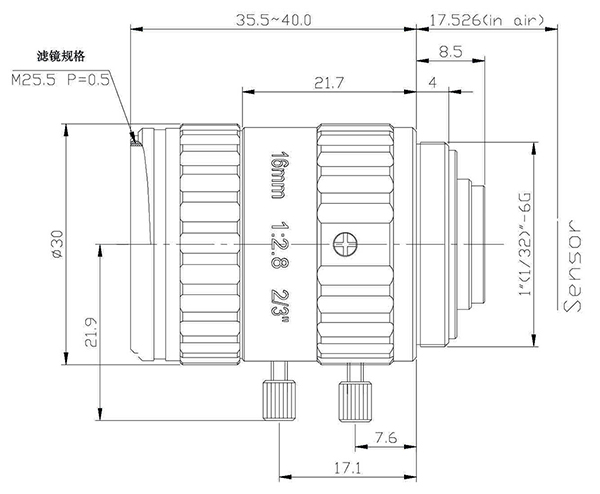

Dimension |
Φ30×35.5mm |
250 |
0.064X |
137.5 |
103.1 |
|
Weight |
75.0g |
220 |
0.073X |
121.0 |
90.8 |
|
Resolution |
10MP |
200 |
0.080X |
110.0 |
82.5 |
|
Filter |
M25.5 P=0.5mm |
180 |
0.089X |
99.0 |
74.3 |
|
Working Temperature |
-20ºC ~ +60ºC |
150 |
0.107X |
82.5 |
61.9 |
