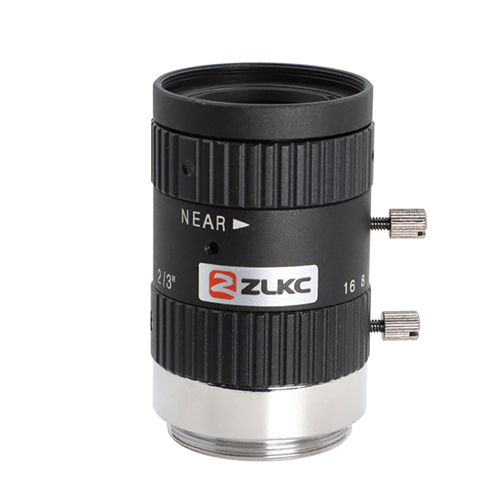

10MP 50mm 2/3"C Mount FA LENS

Working Distance

Optical Magnification

Field of View 2/3"(mm)

Model

FM5028MP10

mm

-

H

V

Image Size

2/3-inch

900

0.055X

161.7

121.2

Focal length

50mm

850

0.058X

152.5

114.4

F No.

F2.8-16

800

0.061X

143.3

107.5

M.O.D(m)

0.3-Inf.

750

0.066X

134.2

100.6

Operation

Iris

Manual

700

0.070X

125.0

93.7

Focus

Manual

650

0.076X

115.8

86.9

Angle of View

(D×H×V)

2/3"

12.6°×10.1°×7.6°

600

0.083X

106.7

80.0

1/2"

9.1°×7.3°×5.5°

550

0.090X

97.5

73.1

1/3"

7.1°×6.2°×3.4°

500

0.100X

88.3

66.2

Operating Wavelength

400nm~700nm

450

0.111X

79.2

59.4

TV Distortion

-0.02%

400

0.126X

70.0

52.5

BFL

18.31mm

350

0.145X

60.8

45.6

Flange FL

17.526mm

300

0.170X

51.7

38.7

Mount

C-Mount

250

0.207X

42.5

31.9

2/3"FOV

70mm×52.5mm(WD=400mm)

200

0.264X

33.3

25.0

Dimension

Φ29×48.2mm

150

0.364X

24.2

18.1

Weight

84.0g

100

0.587X

15.0

11.1

Resolution

10MP

-

-

-

-

Filter

M27 P=0.5mm

-

-

-

-

Working Temperature

-20ºC ～ +60ºC

-

-

-

-
